Circle Saw Leveling Bench

Click here to print data sheet

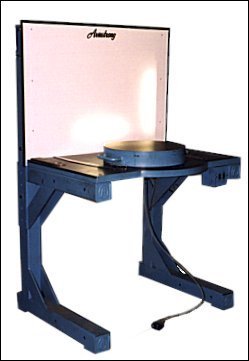

The Circle Saw Bench from Armstrong comes complete with an adjustable height stand for a single leveling block from 12 inches - 30 inches (300 mm - 750 mm) in diameter.
Adjustable height stand

- the bench can be raised or lowered to the height best suited for the filer

Air powered lazy Susan

- for easy rotation of the leveling block

Replaceable UHMW plastic table top work area

- a 1/2 inch (13 mm) thick heavy duty work surface

Two 18" fluorescent lights

- secured behind a white Plexiglas back wall for added lighting at the work station

(Lights powered by 60 Hz; Machines for 50 Hz electrical power will be supplied less lights and switches at a reduced price -those items can be obtained locally)

Leveling blocks

are priced and sold separately


For a single leveling block, 12 inches - 30 inches in diameter

Shipping Weight:

850 lbs (385 kgs)

Shipping Displacement:

87.5 cubic feet (2.5 cubic meters)

Space Requirements:

75 inches (1900mm) High X 48 inches (1220 mm) Wide X 42 inches (1070 mm) Deep

Power Requirements:

110 volts/1 phase/60Hz (for lights or available without lights if 60 Hz power is not available)

Air Requirements:

Mill pressure for rotating leveling block. 100 PSI or 7 bar is preferred

NOTE:    Capacities subject to current design specifications at time of shipment.
