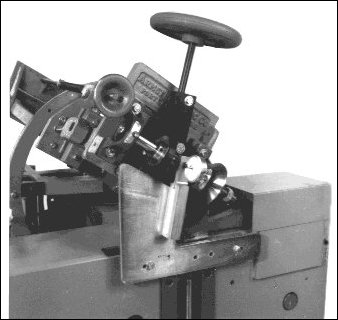

     Armstrong introduces a system for precisely aligning the grinding wheel arbor to the faceplate on all Armstrong conventional band saw sharpeners.  This easy-to-use tool includes a precision, rust-proof plate and a magnetic dial indicator in a storage/carrying case. The plate bolts over the faceplate and the magnetic dial indicator measures the exact alignment of the arbor with respect to the center of any band saw.   The Armstrong system is the fastest and most accurate way to align a band saw sharpener. There are no additional plates required for varying saw thicknesses. One tool fits all Armstrong No. 4, and 6 band saw sharpeners. It can even be easily modified to fit most other makes of band saw sharpeners.
Part 14646 Arbor Alignment Gauge System
Shipping Weight: 15 pounds
